| Tel: (905)851-8688Automatic Swing Door Operator
LOW ENERGY SWING DOOR OPERATOR,
Micom Americas Inc. Smart Swing SW800 LOW ENERGY SWING DOOR OPERATOR, a carefully engineered automatic swing door operator is non-handed and ideal for varied applications, providing multifunction use and service across a wide range of applications.
A fully automatic and low energy swing door operator in one. Designed to offer long term durability and continuous barrier free access for all.
Over coming wind conditions, stack pressure and providing service requirements on existing systems to keep up with accessibility needs has been our mission.
OPERATOR FEATURES
- Adjustable Opening Speed
- Adjustable Back Check Speed & Back Check Position
- Adjustable Closing Speed
- Adjustable Latching Speed & Latching Position
- Adjustable Hold-Open Time
- Reverse on Obstruction
- Optional Push & Go Built in with Separate Adjustable Hold-Open Time
- Fully Adjustable Electronic Door Stop plus Mechanical Stop
- Power to Activate Electric Lock Adjustable 12/24 Volts DC
- Electric Lock Delay to Prevent Door Binding
- Fully Adjustable Power Close
- Wind Control Built in Adjustable Back check

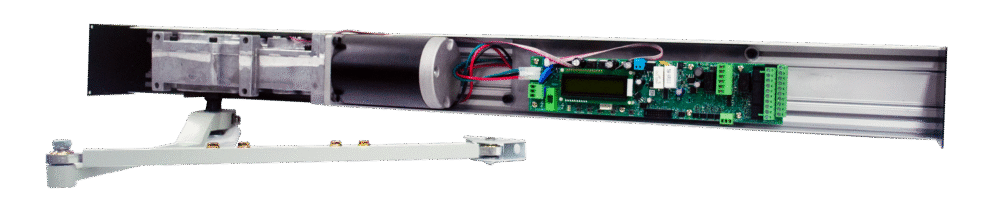

Smart Swing SW800 is a universal non-handed, electro-mechanical swing door operator, which provides powered door opening upon activation.
Designed to facilitate barrier free access into and within buildings, through swing doors.
SMART SWING SW800 features enable the continuous automation of pedestrian doors, whilst offering Low Energy barrier free access. Designed to achieve the highest degree of safety whilst offering a long service life.
During the opening cycle, the spiral spring is tensioned by the rotation of the output shaft. During the closing cycle, the accumulated spring force is released in the closing direction. The spring force can be adjusted so there is appropriate force to close the door when it is operated manually or in case of a power failure.
Micom Americas Inc. Smart Swing SW800 LOW ENERGY SWING DOOR OPERATOR, is perfect for;
- Condos
- Hospitals
- Educational Institutions
Wiring Diagrams
Access Control Releasing Strike and Activating Door Operator
Access Control Releasing Strike then Push Button is used to Activate Door Operator
Access Active or Access Wiring Diagram Polarity Sensitive Stike
Micom Operator with BEA Swing Side Superscan
Micom Operator with BEA Approach Superscan
Micom Operator with BEA Flatscan SW
Micom Operator with BEA Flatscan 3D SW
Micom Operator with BEA Eagle
Micom Operator with BEA Push Plates
Micom Operator with BEA Toucless Plates
Micom Operator with BEA Bodyguard
Micom Operator with BEA Microscan
Micom Operator with BEA 10RD900 Receiver
Micom Operator with BEA 10STRIKECUV
Micom Operator with BEA 10MAGLOCK1UL
Micom Operator with BEA 10KEYPADU
Micom Operator with HTB-08
Micom Operator with HTB-09
Micom Operator with Hello MTR-01 900MHz Receiver
Micom Operators with BEA 900Mhz Vestibule Application
Micom Operator with Fire Alarm Application 2 page version
